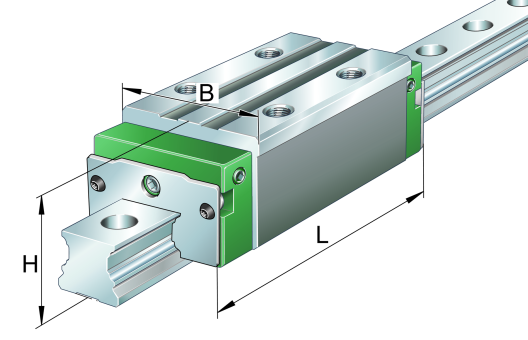

Image may not be identical to the delivered product

KWVE35-B-H-V1-G3

Carriages KWVE..-B-H, high, narrow carriage, four-row

Your item number:

25 in stock

INA

KWVE35-B-H-V1-G3

List price 206,92 €

Your price register now

price per 1 Stck

product specification
Manufacturer	INA
eClass	23-30-04-90
Construction size (mm)	35
Preload	V1
Accuracy class	G3
Custom tariff number	84829900
Weight (kg)	1.71
Carriage shape	Block
Connection hole, lengthwise	50
Connection hole, wide	50
System height (mm)	55
Ball row / roller	Kugel, 4-reihig
Carriage width (mm)	70
Carriage length (mm)	83,3
Lower edge of rail - lower edge of carriage	6
Typ	schmal
Ball / roller chain	Nein
Pressure angle / X/O arrangement	O
